2.0 Specifications
|
Parameters |
Unit |
Values |
|
Operating Wavelength |
nm |
900～1000（Nominal Center Wavelength 950nm） 1050～1110（Nominal Center Wavelength 1080 nm） |
|
Typ. Transmission Ratio |
_ |
99% |
|
Min. Transmission Ratio |
_ |
98% |
|
Max. Handling Power (CW) |
W |
1000, 2000, 4000 ,6000,8000,12000 or Specify |
|
Pulse Power |
_ |
Max. 10KW @10ms
Max. 50KW @1ms
Max. 1MW @50ns |
|
Loss Power Handling Capability |
_ |
1KW for 10 min
500W Continuously |
|
Nominal Beam Pointing Accuracy |
deg |
1 |
|
Min. Beam Ellipticity |
_ |
0.92 |
|
Max. Fiber Tensile Load |
N |
5 |
|
Package Material |
_ |
Stainless Steel / Aluminum / Copper |
|
Operating Temperature |
℃ |
+10 to +50 |
|
Storage Temperature |
℃ |
-10 to +75 |
|
Max. Water Pressure |
Bar |
8 |
|
Flow of Water |
L/min |
1.5-3 |
|
Fiber Length ≤15 m |
_ |
The Fiber Length Tolerance is -10cm |
|
15m＜Fiber Length ≤30m |
_ |
The Fiber Length Tolerance is -20cm |
|
Jacket Length≤15m |
_ |
The Jacket Length Tolerance is +0.2/-0.1m |
|
15m＜Jacket Length ≤30m |
_ |
The Jacket Length Tolerance is +0.4/-0.2m |

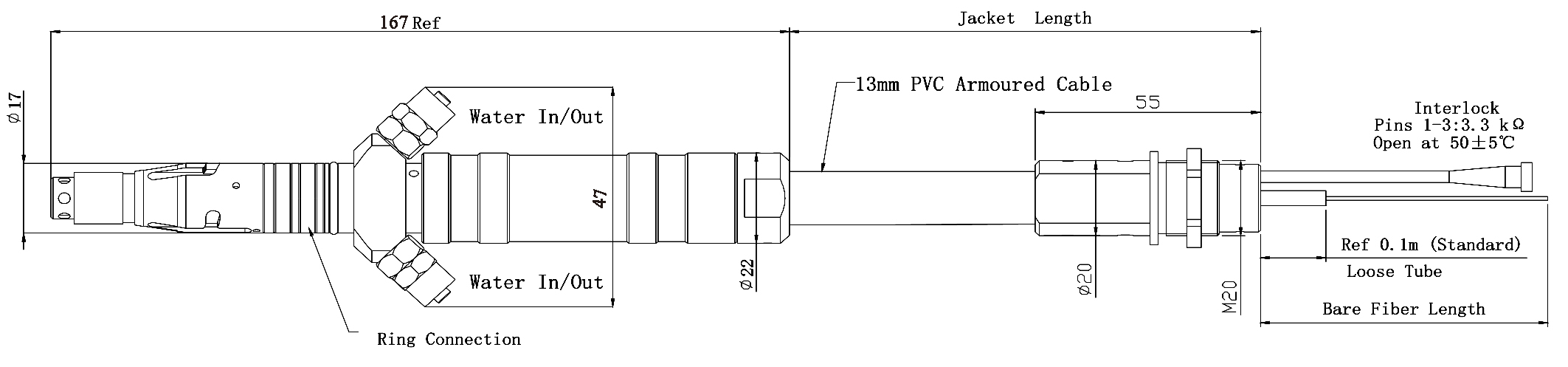

*The actual dimensions may be different from above drawing due to different requirements,please see shipment data sheet.
*If the power is up to or more than 2KW,we suggest using some protective hat without window.
*The material must be RoHS compliant.
